Scalp Vein Sets
Home Medical Needles

Scalp Vein Sets

Scalp Vein Sets
Scalp Vein Sets
Scalp Vein Sets
Scalp Vein Sets
Scalp Vein Sets

Scalp Vein Sets

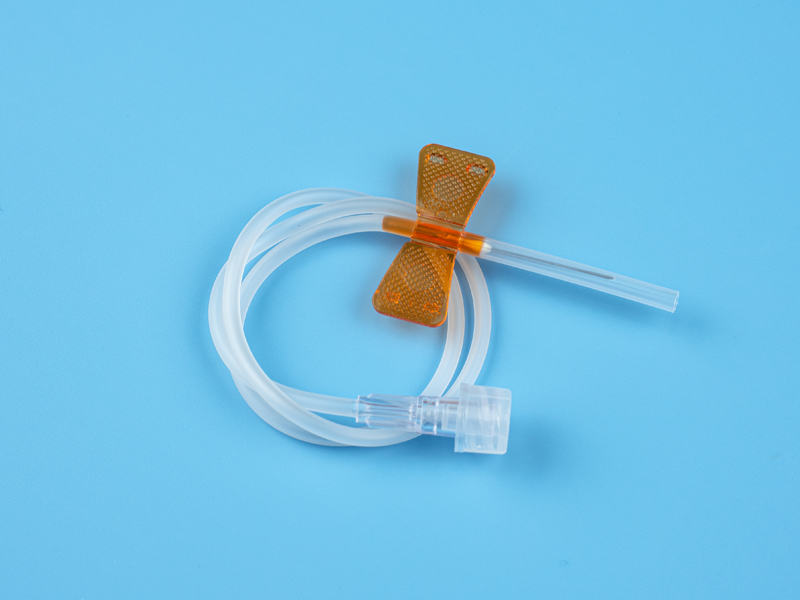

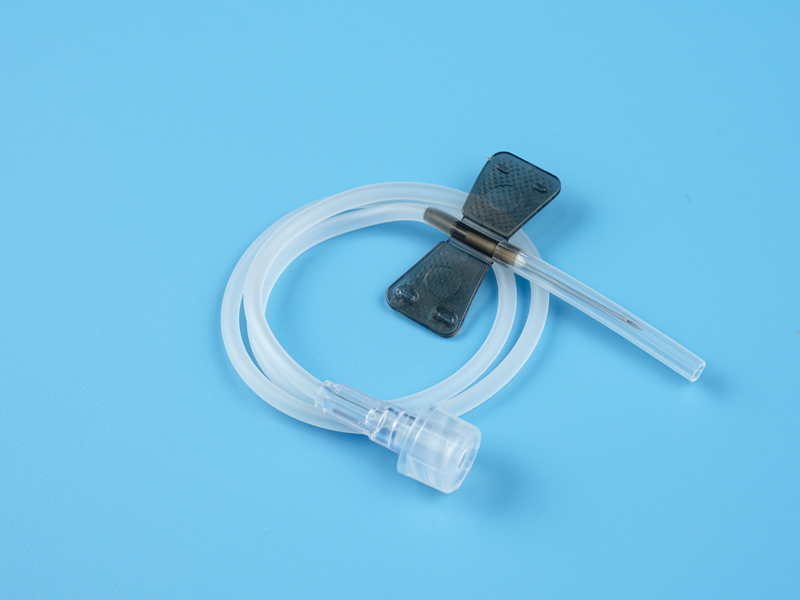

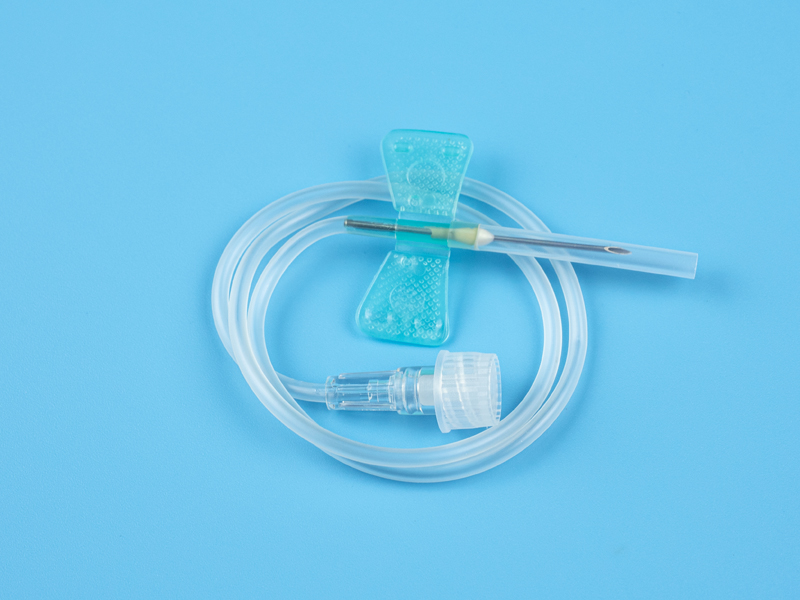

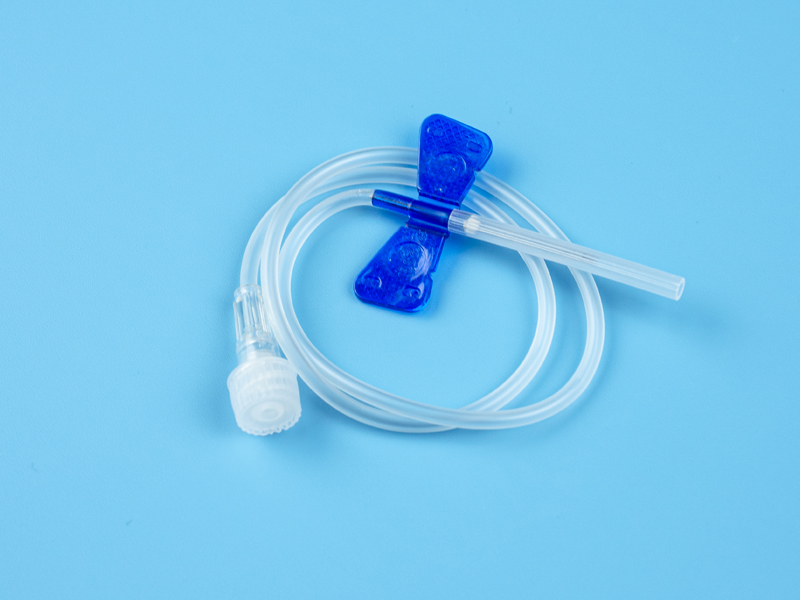

An invasive device which includes a sharp and rigid needle intended to puncture a vein to collect blood and/or for transient (<24 hours) administration of intravenous fluids. The needle includes wings for fixation/placement and includes a short tubing with a connectors. The device may be referred to as a butterfly needle or scalp vein needle. This is a single-use device.



  • Item No :

    90183900
  • Order(MOQ) :

    100000PCS
  • Payment :

    T/T,DP
  • Product Origin :

    China
  • Color :

    custom
  • Shipping Port :

    Shanghai/Nanjing/Shenzhen/Ningbo
  • Lead Time :

    35days
  • Weight :

    /

Intended Use

IThe scalp vein sets is specially designed as a tool for solution-transfusion. Its basic use is inputs the solution together with other instrument according to the need to the human body vein and subcutaneous. And it is suitable in each kinds of clinical need vein massive infusion medicine.

Main Material: Medical grade PP, stainless steel or rubber

SIZE:18G、19G、20G、21G、22G、23G、24G、25G、26G、27G

Characteristic:

  • Soft wings
  • Thin wall cannula with Large ID, and smooth flow
  • Color-coded wings for clear recognition of the size
  • The protective sheath on the tube
  • Easily activated safety sheath can prevent accidental needle prick
  • Needle hub: 1. PVC hub (slip with cap)    2. ABS hub (Luer lock with cap)
  • Blister packaging

Structure Properties Products

The hub is firmly bonded to the needle tube;The protective cover matches well with the needle handle and does not naturally fall off;The catheter is transparent, soft and smooth.



MODEL or TYPE Carton dimension/Q'TY(pcs) 40HQ Q'TY(CTN) 40GQ Q'TY(CTN) 20GQ Q'TY(CTN)
/ 53x37.5x39.5cm/2000pcs 878 744 356



Notes

Product Conformance

  • In compliance with European Medical Device Driective MDD 93/42/EEC:1993( 2007/47/EC);

Quality Assurance

  • Manufacturing process is in compliance with ISO 13485 and ISO 9001 Quality System.





Instructions Download

Scalp Vein Sets / Older Version Latest Version

EN A0 Download  /
