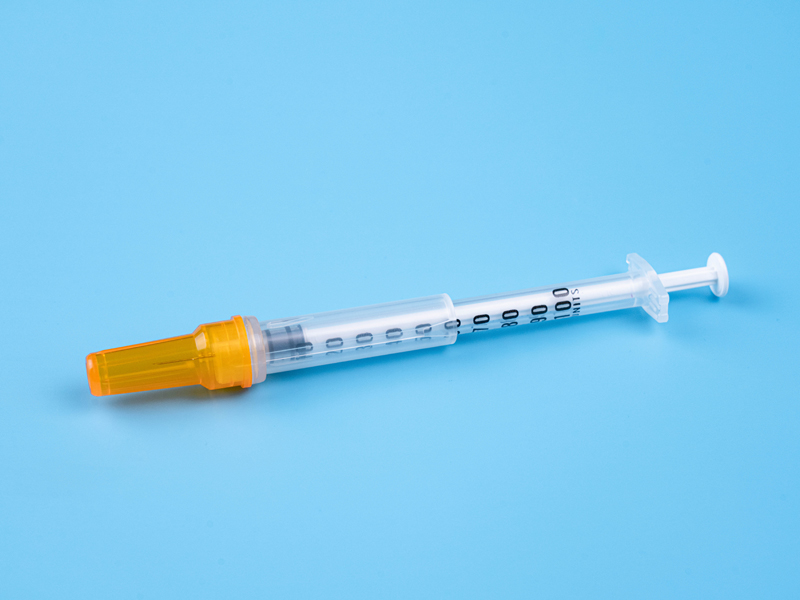

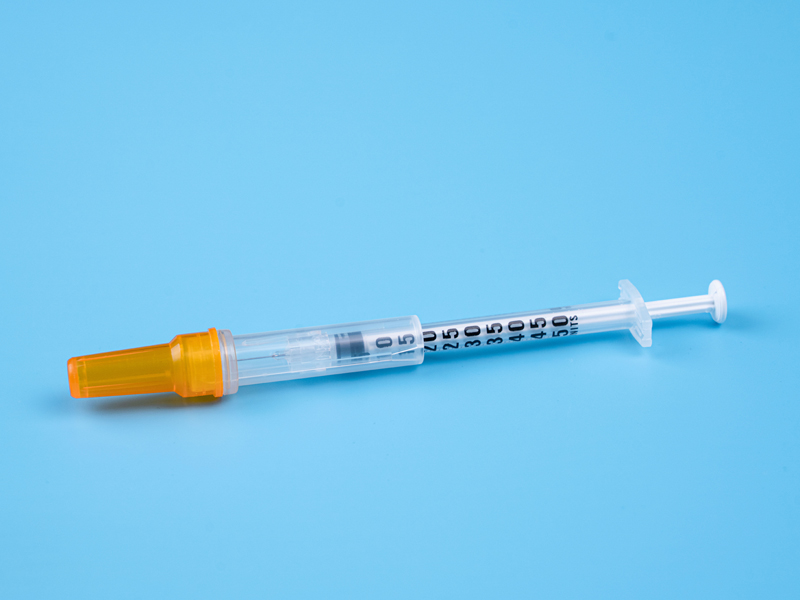

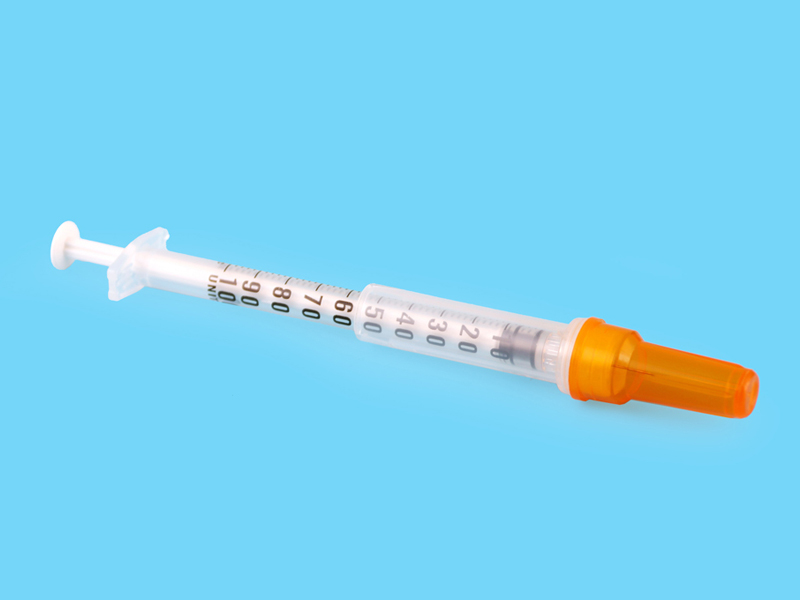

Safety Insulin Syringes With Retractable Needles

Main Material: Medical grade PP,Stainlesssteel or rubber

SIZE:0.3ml U-100/U-40，0.5ml U-100/U-40，1ml U-100/U-40

Intended Use

Safety Insulin Syringes intended for injection of U-100/U-40 insulin into the body, while reducing the risk of sharps injuries and the potential for insulin syringe reuse.

Characteristic:

• The transparent syringe barrel can well ensure the controlled administration of the medicament
• Safe plunger stop function prevents medicament loss
• Smooth sliding plunger ensures smooth and painless injection
• Legible graduation makes it easy to achieve safe and reliable dosage
• Latex-free piston (eliminate the risk of allergic reactions)
• Fixed needle, no dead space
• Ultrafine needle (27-31G)

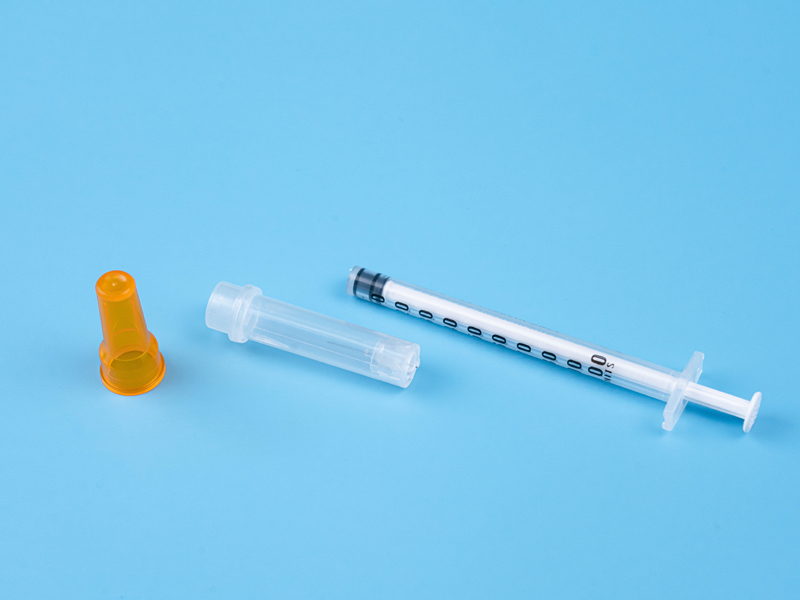

Structure Properties Products

Safety Characteristics: after absorbing the expected dose of liquid medicine, if transportation is needed, push up the sliding-sleeve to protect the needle tip from physical damage during transportation; pull the sliding sleeve to expose the needle tipbefore the injection starts, when the expected dose of liquid medicine is 100% injected, manually slide the sliding sleeve to theposition where the connector base can no longer slide. the needle tip is completely covered in the sliding sleeve. and then thesliding sleeve is manually rotated until it is locked, it could effectively preventing repeated use and accidental needle stickingand avoiding cross infection. To prevent the spread of diseases such as hepatitis B and AlDS, reduces the risk of medical stafoccupational exposure.improved the clinical injection safety.

Notes

Product Conformance

• Conform to ISO 8537,ISO 7864 and ISO 23908 etc.;
• In compliance with European Medical Device Driective MDD 93/42/EEC:1993( 2007/47/EC);

Quality Assurance

• Manufacturing process is in compliance with ISO 13485 and ISO 9001 Quality System.
